Alerts filter

Records in the “Alerts” information window may be filtered in the “Filter” window. To open it, right-click in the “Alerts” information window and press “Filter”.

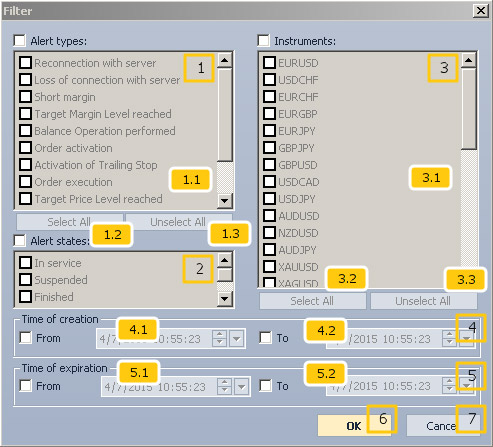

The “Filter” window contains the following elements:

  1. The group of elements responsible for choosing alert types. Elements are activated after the “Alert types” checkbox is marked.
    • 1.1. The list of alert types.
    • 1.2. The button selecting all types in #1.1 list.
    • 1.3. The button unselecting all types in #1.1 list.
  2. Alert states list . The list is activated after the “Alert states” checkbox is marked.
  3. The group of elements responsible for choosing instruments. Elements are activated after the “Instruments” checkbox is marked.
    • 3.1. The list of trading instruments.
    • 3.2. The button selecting all instruments in #3.1 list.
    • 3.3. The button unselecting all instruments in #3.1 list.
  4. The group of elements corresponding to alert creation time.
    • 4.1. The checkbox of interval beginning and its value in a separate field.
    • 4.2. The checkbox of interval ending and its value in a separate field.
  5. The group of elements corresponding to alert expiration time.
    • 5.1. The checkbox of interval beginning and its value in a separate field.
    • 5.2. The checkbox of interval ending and its value in a separate field.
  6. The “OK” button which applies filters.
  7. The “Cancel” button.
