User Guide

Alert settings

Parameters may be grouped according to alert types:

• «Target Margin Level reached» parameters
• «Order activation», «Activation of Trailing Stop», «Order Execution» parameters
• «Target Price Level reached» parameters
• «Price Change» parameters
• «Target Position Profit/Loss reached» parameters
• «Alarm clock» parameters
• General alert parameters

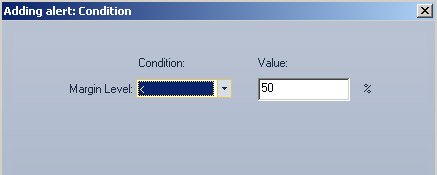

«Target Margin Level reached» parameters

The parameters imply choosing a condition from the drop-down list and setting the value which triggers an alert.

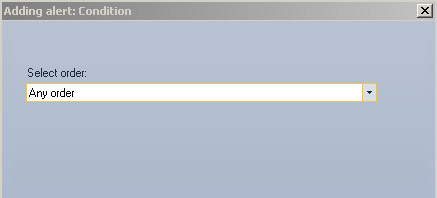

«Order activation», «Activation of Trailing Stop», «Order Execution» parameters

The parameters allow a user to select order an alert will be applied to.

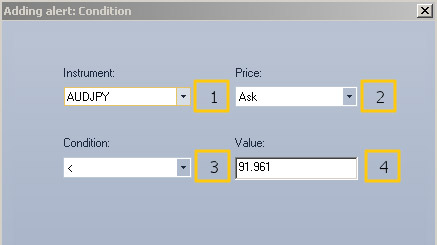

«Target Price Level reached» parameters

1. Drop-down list allowing a user to choose an instrument the alert will be applied to.
2. Drop-down list allowing a user to choose the price type: Ask, Bid or Mid.
3. Drop-down list allowing a user to choose a comparison operation between the current price of the selected instrument and the specified price value. (“Condition”).
4. Field for setting price value.

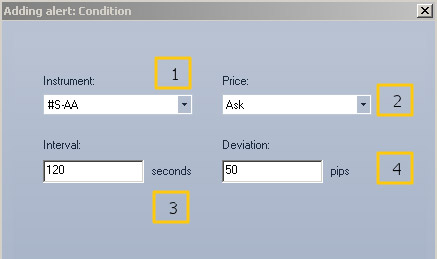

«Price Change» parameters

1. Drop-down list allowing a user to choose an instrument the alert will be applied to.
2. Drop-down list allowing a user to choose the price type: Ask, Bid or Mid.
3. Drop-down list allowing a user to choose an interval within which the price should change.
4. Price deviation value.

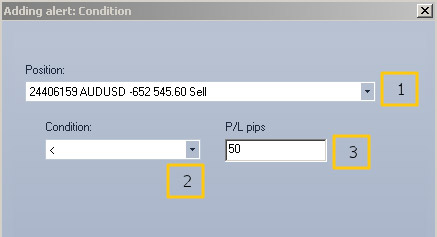

«Target Position Profit/Loss reached» parameters

1. Drop-down list allowing a user to choose an open position the alert will be applied to.
2. Drop-down list allowing a user to choose a comparison operation between the current price and the specified Profit/Loss level for the selected position (“Condition”).
3. Field for setting Profit/Loss value the current price will be compared to.

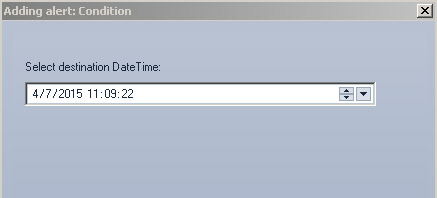

«Alarm clock» parameters

The parameters allow a user to select the date and time for triggering an alert (“Select destination DateTime”).

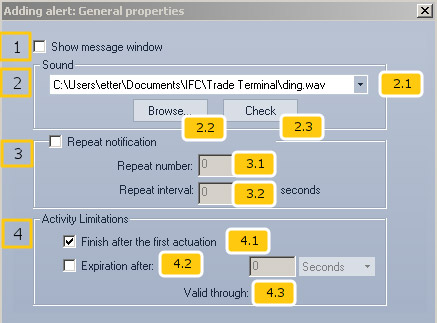

General alert parameters

General alert parameters are set by customizing the following elements:

1. The checkbox for displaying the corresponding message window (“Show message window”).
2. The group of elements responsible for sound notifications.
   • 2.1 The drop-down list allowing a user to choose an audio file played when alert triggers.
   • 2.2 The “Browse” button for adding an audio file to the list.
   • 2.3 The “Check” button to play the chosen audio file.
3. The group of elements responsible for repeating alerts. These elements are activated by marking the “Repeat notification” checkbox.
   • 3.1 Number of repetitions when an alert is triggered.
   • 3.2. Repetition interval in seconds.
4. The group of elements responsible for alert activity limitations.
   • 4.1. The checkbox for single alert triggering (“Finish after the first actuation”).
   • 4.2. The checkbox for setting expiration time and the drop-down list allowing a user to choose a unit of measurement.
   • 4.3. The field displaying general time until the alert is active, according to the expiration time set (“Valid through”).
